The MONARCH - FOLDING STEP-THRU EBIKE
Sale

The MONARCH - FOLDING STEP-THRU EBIKE

VENOM
SKU:
120-WH
$1,750.00 $1,495.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

Integrated Bright LED Headlight and Taillight

The front headlight is connected to the motor and battery and provides a high quality beam that lights up the roads on your ride.  Vehicles can easily see you from a good distance with its bright LED lights making it much safer at night.

750WATT PEAK/500W Continous Powered Motor

A fat hub motor in the Rear wheel can crank out a continuous 500 watts of power with the ability to ratchet things up to over 750 peak watts of power for hill climbs and quicker acceleration. This motor has 80 Newton meters of torque.

12.5Ah High Capacity Removable Battery

Running on a 48-volt system, as well as a 12.5Ah battery, this ebike can reach up to an estimated max of 40 miles with pedal assist. The locking removable battery not only keeps the center of gravity low but the overall weight well- balanced.

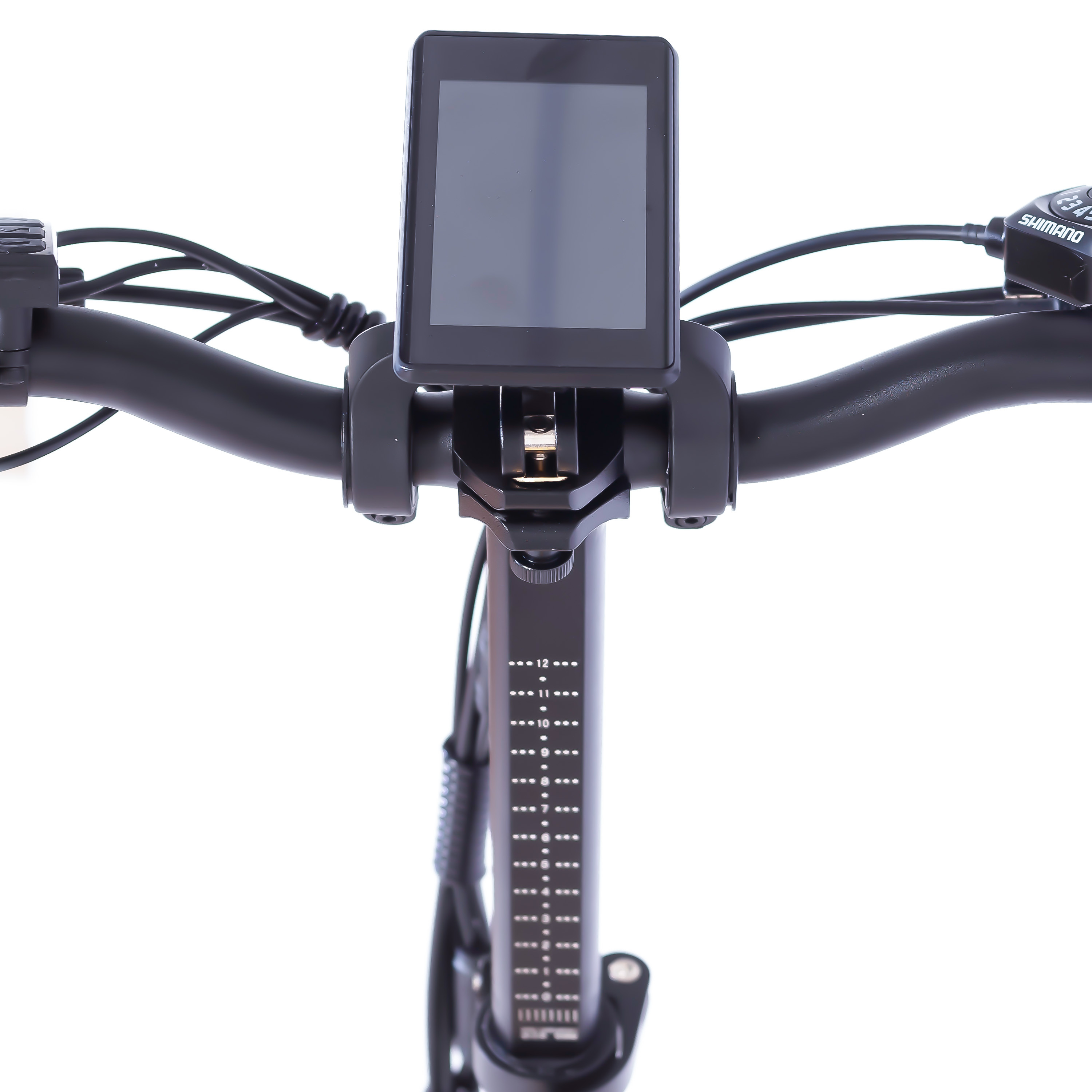

Compact Lighted Display

Compact yet clear backlight display makes your eyes get all information immediately, like battery capacity, time, pedal assist level, speed, range. Simple is always great.

Foldable Frame

The Monarch can fold in half to easly store away in your vehicle or garage.  The front neck also folds to give you extra room for low clearance storage.  The pedals also fold easily to narrow its width.

Shimano 7 Speed Gears

The Shimano gear system provides easy and consistent gear shifting with the push of a lever. We also equip a protection bar for added safety. Shimano is the most well known gear shift system in the industry.

SPECIFICATIONS

Battery: 48V/12.5Ah
Range: 20-40 Miles
Motor: 48V/500W 750 Peak Brushless DC hub motor
Total Payload Capacity: 330 lbs
Recommended Rider Heights: 5'6" ~ 6'1"
Maximum Speed: 20MPH

Charger: US standard 2.0 A smart charger
Controller: 48V / 20A
Display: K-LCD5 Panel
Weight: 63.6 lbs
Pedal Assist Intelligent: 0~5 level pedal assist
Box Dimensions: (cm) 98 L x 48 W x 72 H



COMPONENTS

Tires: Tires 20 x 4.0 Fat Offroad Tires
Brake lever: Eunorau Hydraulic Disc Lever with motor cutoff switch
Rear Light: Super bright tallight controlled via display
Freewheel: Shimano 7 speed gear shift system
Brake: 160 MM Hydraulic Disc Brake
Throttle: Thumb Throttle
Crank: 170mm forged Aluminum Alloy
Gearing: 7 Speed 1x7 Shimano Altus Rear Derailleur

Frame Material: Aluminum Alloy
Stem: Telescoping Height, 260mm Base with 140mm Extension, 10mm Spacer, 25.4mm Clamp Diameter
Pedal: High-Quality Folding Nylon Pedals
Front Light: LED Light
Saddle: Comfortable Saddle
Tool: Included
Sprocket: 48T chain-wheel crank
Rims: 20inch Black Alloy
